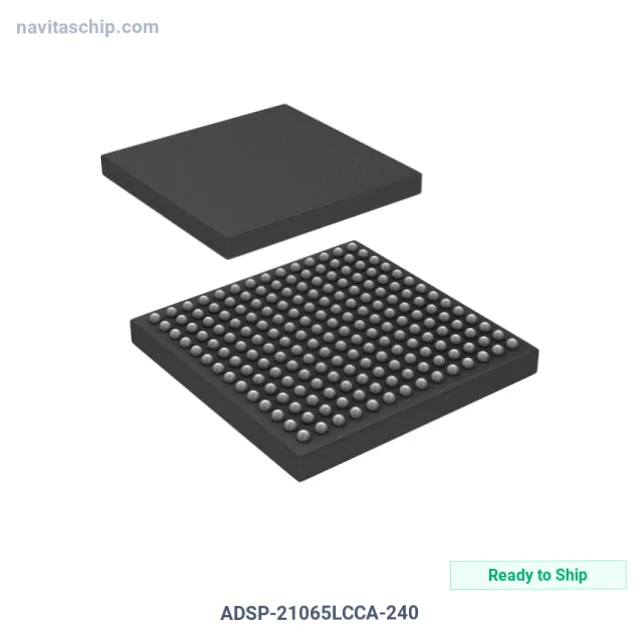

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-21065LCCA-240 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-624439 |
| Description | IC DSP CTLR 32BIT 196CSBGA |
| Spec | 196-BGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | Floating Point |
| Interface | Host Interface, Serial Port |
| Clock Rate | 60MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 64kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V |
| Operating Temperature | -40°C ~ 100°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 196-CSPBGA (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-21065LCCA-240 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-21065LCCA-240 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor Ctlr 32bit in 196-Pin BGA Package, housed in a compact 196-CSPBGA (15x15) package.
Key Technical Specifications
- Interface: Host Interface, Serial Port
- Operating Temperature: -40°C ~ 100°C (TC)
- Mounting: Surface Mount
- Package: 196-BGA, CSPBGA
- Device Package: 196-CSPBGA (15x15)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
