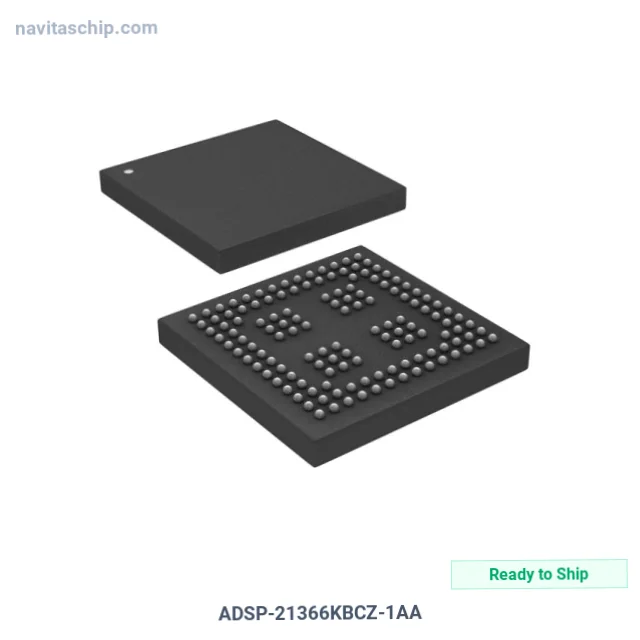

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-21366KBCZ-1AA |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-996430 |
| Description | IC DSP 32BIT 333MHZ 136CSBGA |
| Spec | 136-LFBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Type | Fixed/Floating Point |
| Interface | DAI, SPI |
| Clock Rate | 333MHz |
| Non-Volatile Memory | ROM (512kB) |
| On-Chip RAM | 384kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 136-CSPBGA (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-21366KBCZ-1AA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-21366KBCZ-1AA is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor 32bit operating at 333MHz in 136-Pin BGA Package, housed in a compact 136-CSPBGA (12x12) package.
Key Technical Specifications
- Interface: DAI, SPI
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 136-LFBGA, CSPBGA
- Device Package: 136-CSPBGA (12x12)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
