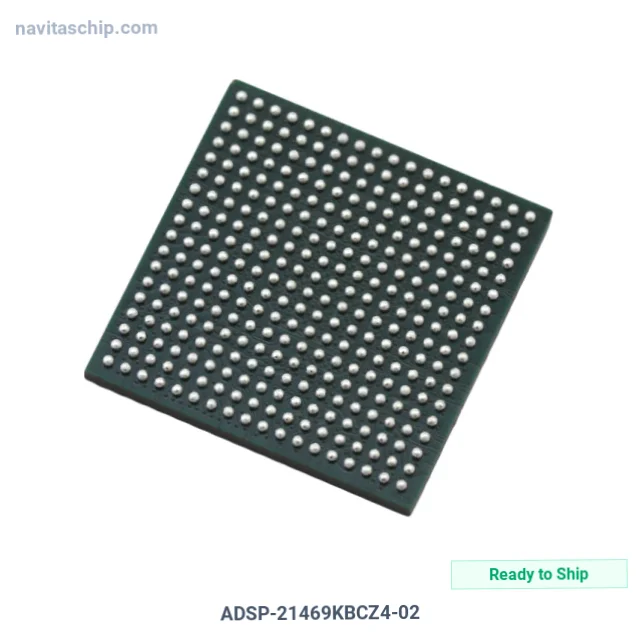

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-21469KBCZ4-02 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-17826517 |
| Description | REV 0.2 450MHZ SHARC PROC W/5 MB |
| Spec | 324-BGA, CSPBGA |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Type | Floating Point |
| Interface | DAI, DPI, EBI/EMI, I2C, SCI, SPI, SSP, UART/USART |
| Clock Rate | 450MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 5Mbit |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.1V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 324-CSPBGA (19x19) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-21469KBCZ4-02 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Rev 0.2 operating at 450MHz Sharc Proc W/5 Mb, housed in a compact 324-CSPBGA (19x19) package.
Key Technical Specifications
- Interface: DAI, DPI, EBI/EMI, I2C, SCI, SPI, SSP, UART/USART
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 324-BGA, CSPBGA
- Device Package: 324-CSPBGA (19x19)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
