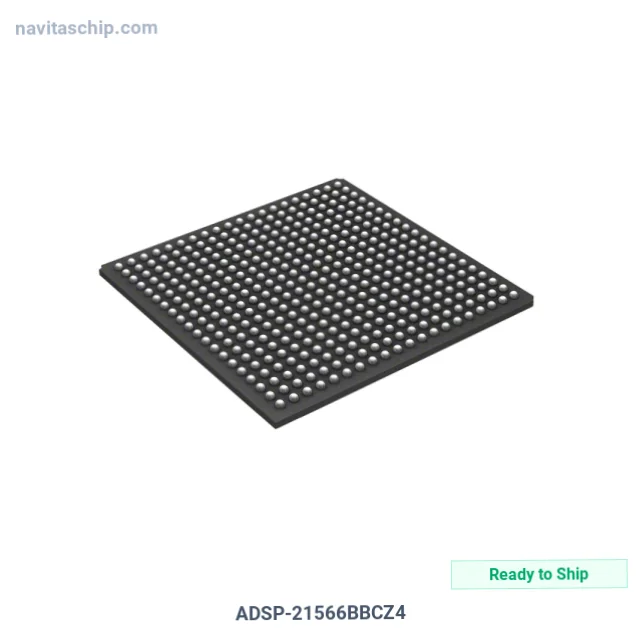

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-21566BBCZ4 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-13978980 |
| Description | 400 MHZ SHARC WITH DDR IN A BGA |
| Spec | 400-LBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Fixed/Floating Point |
| Interface | DDR3, DDR3L, I2C, Link Port, QSPI, SPDIF, SPI, SPORT, UART/USART |
| Clock Rate | 400MHz |
| Non-Volatile Memory | OTP (896B) |
| On-Chip RAM | 896kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.00V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 400-CSPBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-21566BBCZ4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-21566BBCZ4 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). operating at 400MHz Sharc with DDR in a -BGA, housed in a compact 400-CSPBGA (17x17) package.
Key Technical Specifications
- Interface: DDR3, DDR3L, I2C, Link Port, QSPI, SPDIF, SPI, SPORT, UART/USART
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 400-LBGA, CSPBGA
- Device Package: 400-CSPBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
