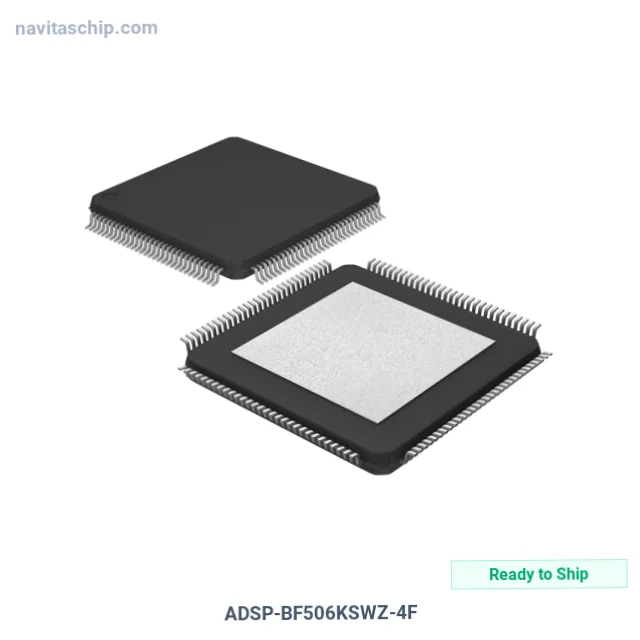

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-BF506KSWZ-4F |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2780732 |
| Description | IC DSP 12BIT 400MHZ 120LQFP |
| Spec | 120-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | CAN, EBI/EMI, I2C, IrDA, PPI, SPI, SPORT, UART/USART |
| Clock Rate | 400MHz |
| Non-Volatile Memory | FLASH (16MB) |
| On-Chip RAM | 68kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.29V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 120-LQFP-EP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-BF506KSWZ-4F is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor 12bit operating at 400MHz in 120-Pin LQFP Package, housed in a compact 120-LQFP-EP (14x14) package.
Key Technical Specifications
- Interface: CAN, EBI/EMI, I2C, IrDA, PPI, SPI, SPORT, UART/USART
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 120-LQFP Exposed Pad
- Device Package: 120-LQFP-EP (14x14)
