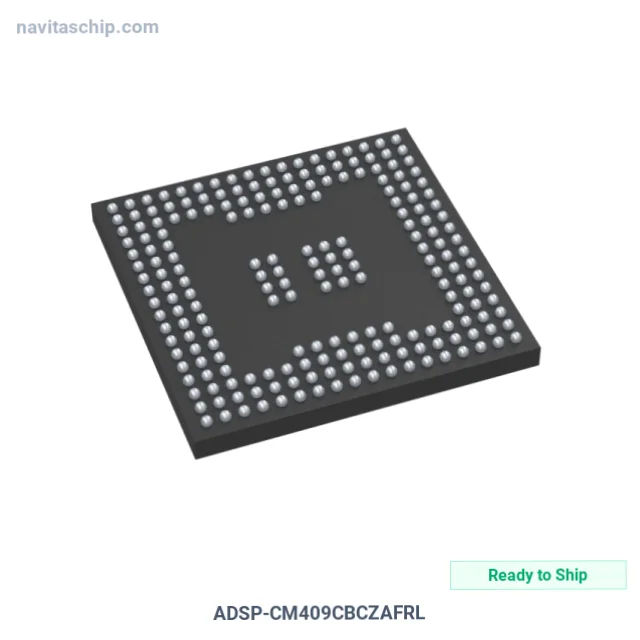

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-CM409CBCZAFRL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-13404873 |
| Description | ARM CORTEX M4 MIXED-SIGNAL BGA P |
| Spec | 212-LBGA, CSPBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Floating Point |
| Interface | CAN, Ethernet, I2C, SPI, SPORT, UART/USART, USB |
| Clock Rate | 240MHz |
| Non-Volatile Memory | FLASH (2MB) |
| On-Chip RAM | 384kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 212-CSPBGA (19x19) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-CM409CBCZAFRL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-CM409CBCZAFRL is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Arm Cortex M4 Mixed-Signal -BGA P, housed in a compact 212-CSPBGA (19x19) package.
Key Technical Specifications
- Interface: CAN, Ethernet, I2C, SPI, SPORT, UART/USART, USB
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 212-LBGA, CSPBGA
- Device Package: 212-CSPBGA (19x19)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
