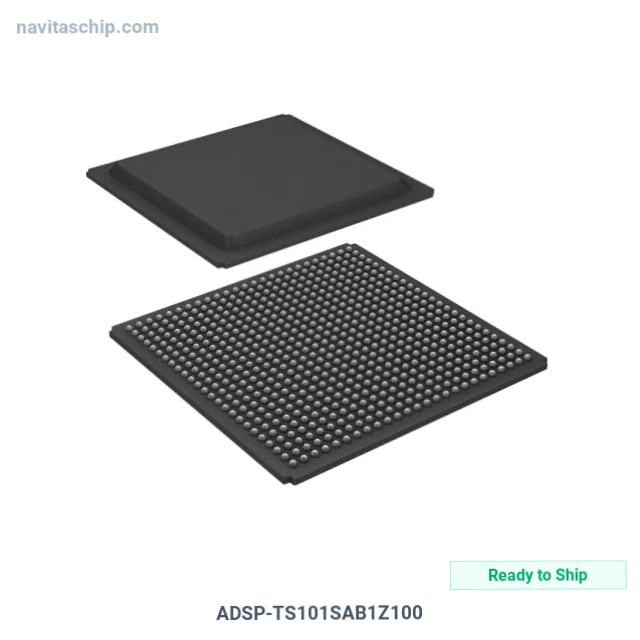

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-TS101SAB1Z100 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1305312 |
| Description | IC DSP CTRLR 128BIT BUS 625-BGA |
| Spec | 625-BBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Fixed/Floating Point |
| Interface | Host Interface, Link Port, Multi-Processor |
| Clock Rate | 300MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 768kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 625-PBGA (27x27) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-TS101SAB1Z100 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-TS101SAB1Z100 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor Ctrlr 128bit Bus in 625-Pin BGA Package, housed in a compact 625-PBGA (27x27) package.
Key Technical Specifications
- Interface: Host Interface, Link Port, Multi-Processor
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 625-BBGA
- Device Package: 625-PBGA (27x27)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
