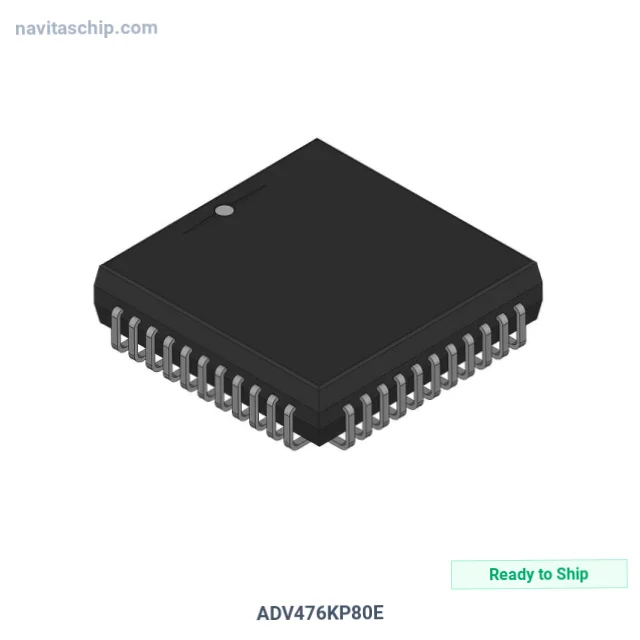

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADV476KP80E |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12112100 |
| Description | IC DAC 6BIT A-OUT 44PLCC |
| Spec | 44-LCC (J-Lead) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 6 |
| Number of D/A Converters | 3 |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADV476KP80E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADV476KP80E is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 6bit A-Out 44plcc, housed in a compact 44-PLCC (16.59x16.59) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 44-LCC (J-Lead)
- Device Package: 44-PLCC (16.59x16.59)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
