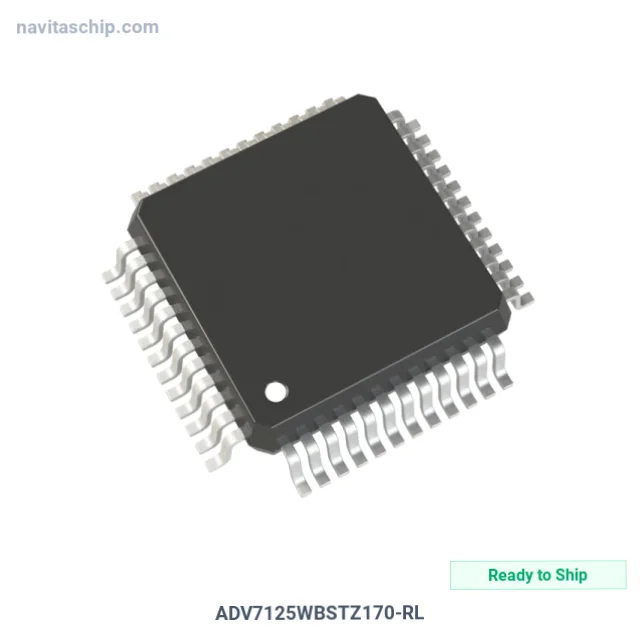

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADV7125WBSTZ170-RL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5268039 |
| Description | IC DAC 8BIT A-OUT 48LQFP |
| Spec | 48-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Number of Bits | 8 |
| Number of D/A Converters | 3 |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V, 5V |
| INL/DNL (LSB) | ±0.5, ±0.25 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADV7125WBSTZ170-RL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADV7125WBSTZ170-RL is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 8bit A-Out in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package.
Struggling with supply gaps during industrial automation and test equipment lifecycle ramps? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Applications
Essential component for:
- R-2R ladder and segmented DAC architectures for monotonic output
- voltage-output DAC with integrated buffer for direct load driving
- 12-bit and 16-bit precision DAC with integrated reference and calibration
- wide supply voltage operation from single-supply to bipolar split rails
Why Choose NavitasChip for ADV7125WBSTZ170-RL?
NavitasChip offers global surplus sourcing network for the ADV7125WBSTZ170-RL and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
