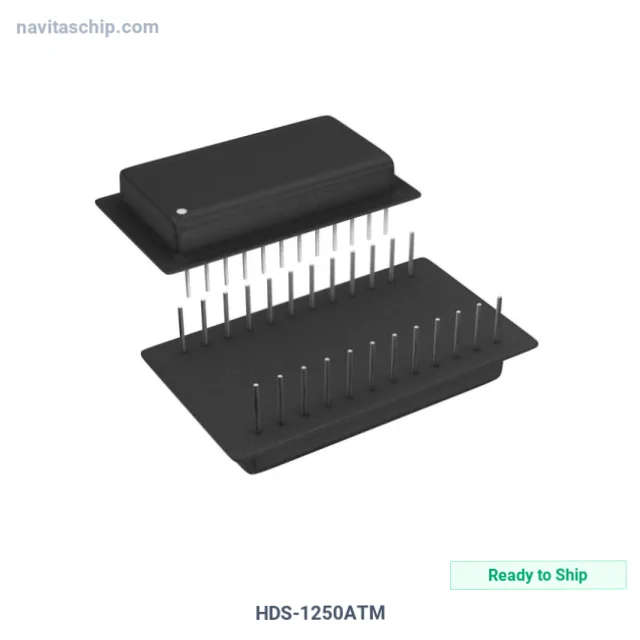

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HDS-1250ATM |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-625077 |
| Description | IC DAC 12BIT A-OUT 24DIP |
| Spec | 24-DIP (0.600", 15.24mm) Metal |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 35µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±14.5V ~ 15.5V |
| INL/DNL (LSB) | ±0.5, - |
| Architecture | String DAC |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 24-DIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. HDS-1250ATM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HDS-1250ATM is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 12bit A-Out in 24-Pin DIP Package, housed in a compact 24-DIP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 24-DIP (0.600", 15.24mm) Metal
- Device Package: 24-DIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
