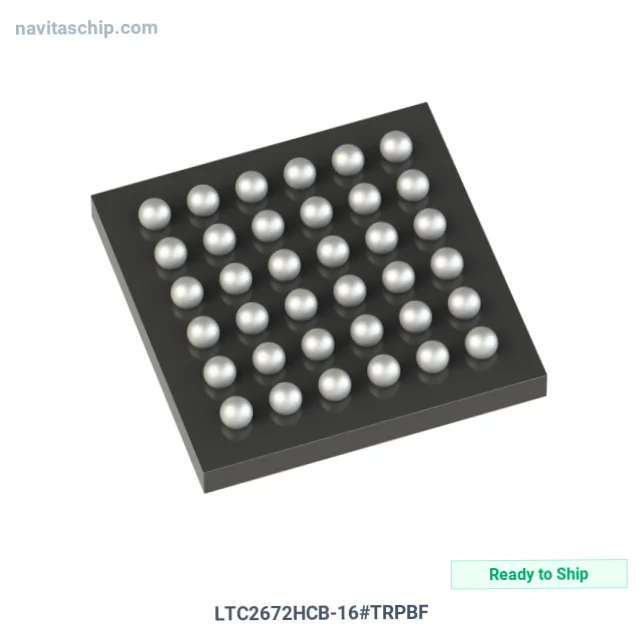

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC2672HCB-16#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-22479227 |
| Description | 5ch 300mA 16Bit CurrentSourceOut |
| Spec | 36-WFBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 5 |
| Settling Time | 200µs (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | 3-Wire Serial, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 5.5V |
| Voltage - Supply, Digital | 1.71V ~ 5.5V |
| INL/DNL (LSB) | ±12, ±0.45LSB |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 36-WLCSP (3.53x3.48) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC2672HCB-16#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC2672HCB-16#TRPBF is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). 5-Channel 300ma 16bit Currentsourceout, housed in a compact 36-WLCSP (3.53x3.48) package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 36-WFBGA, WLCSP
- Device Package: 36-WLCSP (3.53x3.48)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
