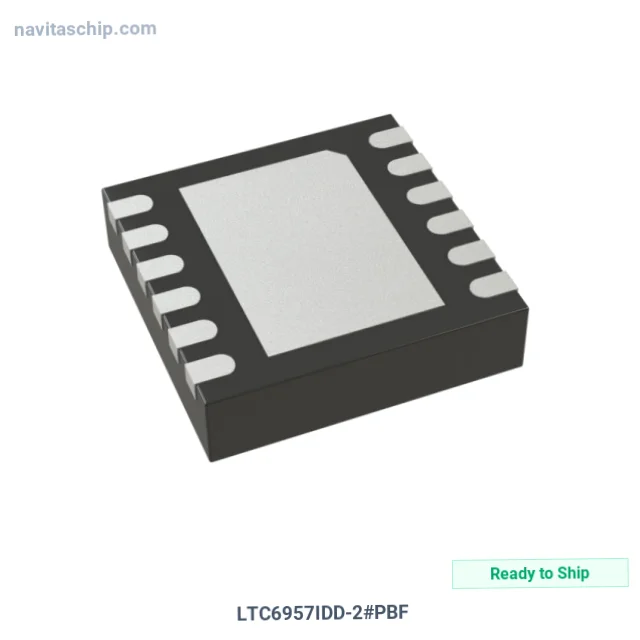

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6957IDD-2#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3973492 |
| Description | IC CLK BUFFER DVR 1:2 12DFN |
| Spec | 12-WFDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:2 |
| Differential - Input | Yes/Yes |
| Input | CML, CMOS, LVDS, LVPECL |
| Output | LVDS |
| Frequency - Max | 300 MHz |
| Voltage - Supply | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-DFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC6957IDD-2#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6957IDD-2#PBF is a Clock Buffer and Driver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Clock Buffer Driver 1:2 in 12-Pin DFN Package, housed in a compact 12-DFN (3x3) package, with 3.15V ~ 3.45V supply voltage. Originally developed by Linear Technology.
Key Technical Specifications
- Supply Voltage: 3.15V ~ 3.45V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 12-WFDFN Exposed Pad
- Device Package: 12-DFN (3x3)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
