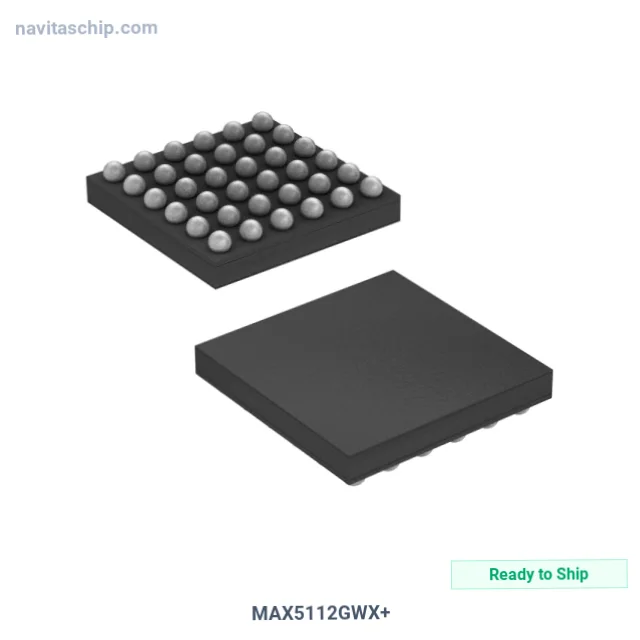

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX5112GWX+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-25581039 |
| Description | 9-CHANNEL, 14-BIT, CURRENT DAC W |
| Spec | 36-WFBGA, WLBGA |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Number of Bits | 14 |
| Number of D/A Converters | 9 |
| Settling Time | 15µs (Typ) |
| Output Type | Current - Buffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.6V ~ 3.3V |
| Voltage - Supply, Digital | 2.6V ~ 3.3V |
| INL/DNL (LSB) | ±2, ±0.5 |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 36-WLP (3.07x3.07) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX5112GWX+ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). 9-Channel, housed in a compact 36-WLP (3.07x3.07) package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Output Type: Current - Buffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 36-WFBGA, WLBGA
- Device Package: 36-WLP (3.07x3.07)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
