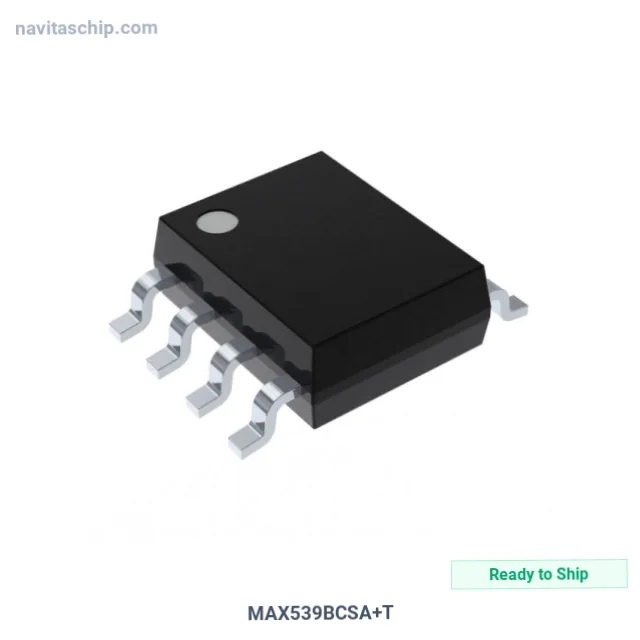

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX539BCSA+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-1781856 |
| Description | IC DAC 12BIT V-OUT 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 25µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX539BCSA+T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX539BCSA+T is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Digital-To-Analog Converter 12bit V-Out in 8-Pin SOIC Package, housed in a compact 8-SOIC package. Originally developed by Maxim Integrated, this component continues to be fully supported.
