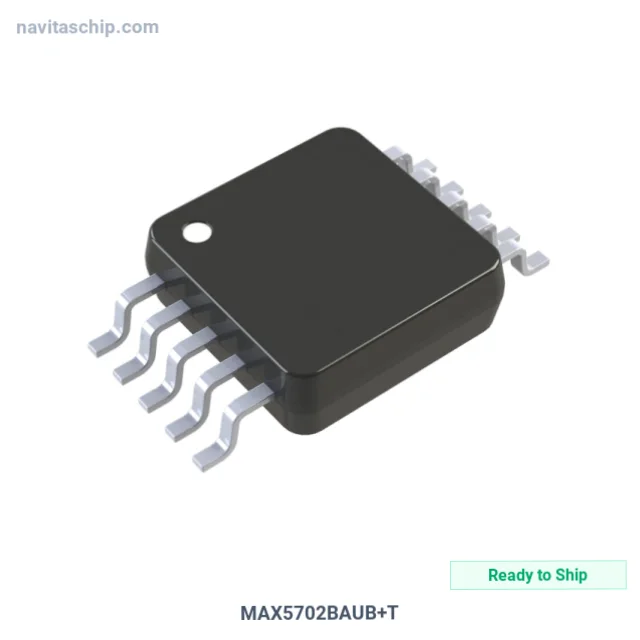

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX5702BAUB+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-5086405 |
| Description | IC DAC 12BIT V-OUT 10UMAX |
| Spec | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 4.5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 10-uMAX/uSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX5702BAUB+T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX5702BAUB+T is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Digital-To-Analog Converter 12bit V-Out 10umax, housed in a compact 10-uMAX/uSOP package. Originally developed by Maxim Integrated, this component continues to be fully supported.
Struggling with legacy 8-bit and 12-bit DAC sourcing for fielded industrial control systems? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Device Package: 10-uMAX/uSOP
- RoHS Compliant
