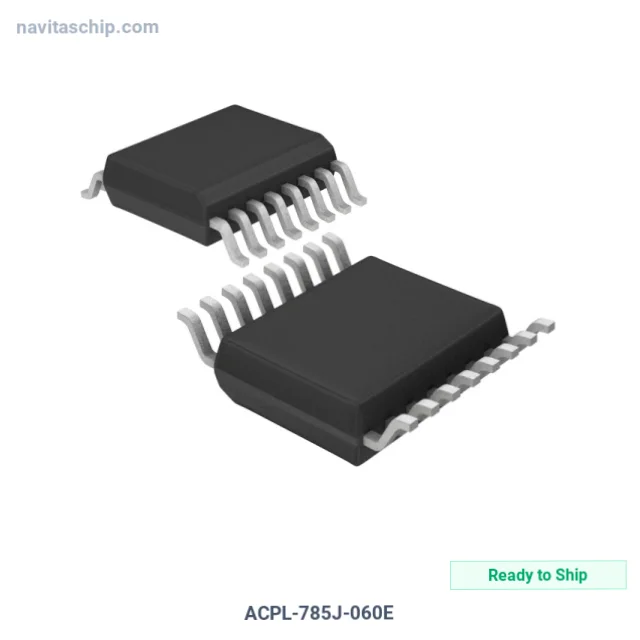

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ACPL-785J-060E |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-2210176 |
| Description | IC OPAMP ISOLATION 1 CIRC 16SO |
| Spec | 16-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| -3db Bandwidth | 30 kHz |
| Current - Input Bias | 350 nA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 10.7mA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited ACPL-785J-060E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ACPL-785J-060E is an Operational Amplifier (Op Amp) manufactured by Broadcom Limited (Broadcom). Integrated Circuit Operational Amplifier Isolation 1 Circ 16so, housed in a compact 16-SO package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.295", 7.50mm Width)
- Device Package: 16-SO
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
