| Manufacturer Product Number | HCPL-2602-000E |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-825298 |
| Description | OPTOISO 3.75KV RECEIVER 8DIP |
| Spec | 8-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Type | Line Receiver |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | AC, DC |
| Current - Output / Channel | 50mA |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 24ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 2.3 V |
| Current - DC Forward (If) (Max) | 60 mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-2602-000E Datasheet |

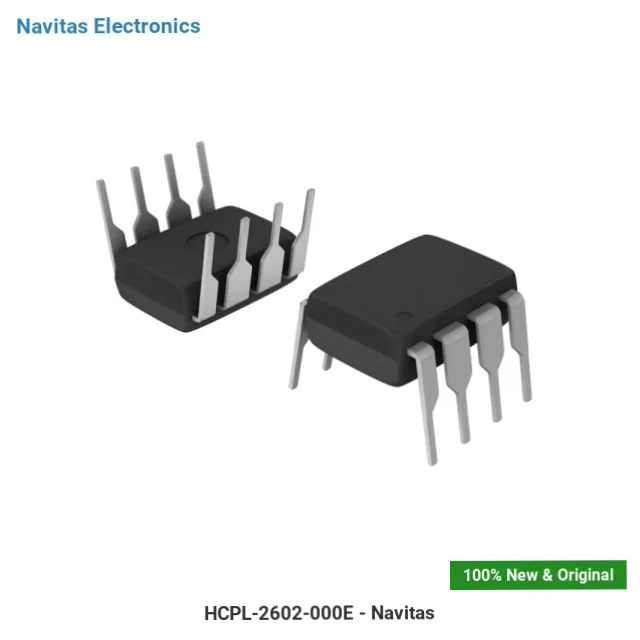

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-2602-000E is an Isolator manufactured by Broadcom Limited (Broadcom). Optocoupler Isolator 3.75kV Receiver in 8-Pin DIP Package, housed in a compact 8-DIP package, with 4.5V ~ 5.5V supply voltage.
