| Manufacturer Product Number | HCPL-4200 |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-637413 |
| Description | OPTOISO 3.75KV RECEIVER 8DIP |
| Spec | 8-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Type | Current Loop Receiver |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Current - Output / Channel | 25mA |
| Propagation Delay tpLH / tpHL (Max) | 1.6µs, 1µs |
| Rise / Fall Time (Typ) | 55ns, 15ns |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-4200 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

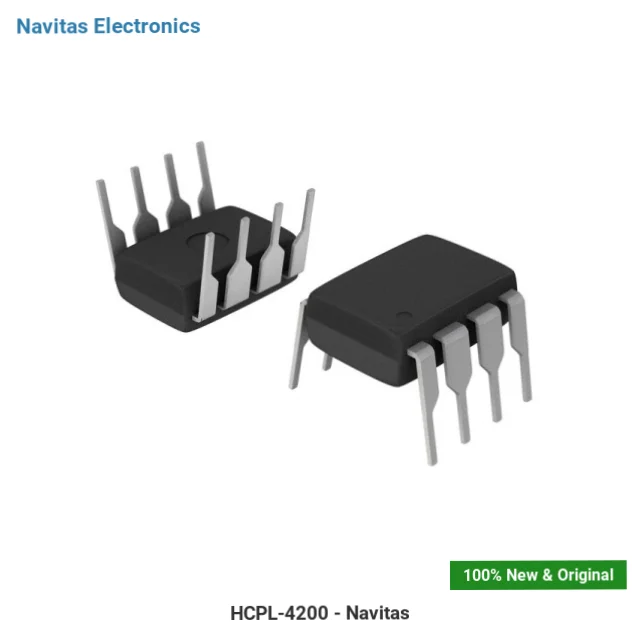

The HCPL-4200 is an Isolator manufactured by Broadcom Limited (Broadcom). Optocoupler Isolator 3.75kV Receiver in 8-Pin DIP Package, housed in a compact 8-DIP package, with 4.5V ~ 20V supply voltage.
In today's market, annual BOM cost reduction pressure can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 20V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm)
- Device Package: 8-DIP
- RoHS Compliant
Applications
Commonly utilized in:
- solar inverters
- power supplies
- galvanic isolation
Why Choose NavitasChip for HCPL-4200?
NavitasChip offers cost-saving procurement for the HCPL-4200 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for HCPL-4200 with regional warehouse support.
HCPL-4200 - Get instant quote online.
