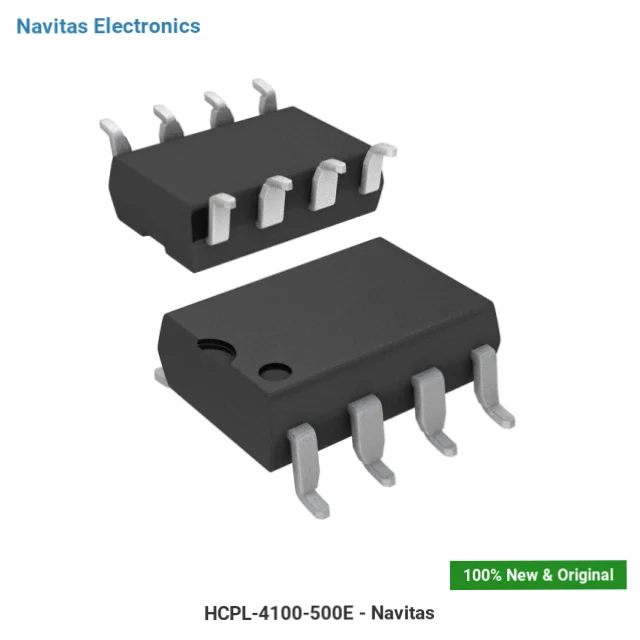

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HCPL-4100-500E |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-1234557 |
| Description | OPTOISO 3.75KV TRNSMTR 8DIP GW |
| Spec | 8-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Broadcom Limited |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Current Loop Transmitter |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | Logic |
| Current - Output / Channel | 30mA |
| Propagation Delay tpLH / tpHL (Max) | 1.6µs, 1µs |
| Rise / Fall Time (Typ) | 16ns, 23ns |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DIP Gull Wing |
| Approval Agency | CSA, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-4100-500E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-4100-500E is an Isolator manufactured by Broadcom Limited (Broadcom). Optocoupler Isolator 3.75kV Trnsmtr in 8-Pin DIP Package Gull Wing, housed in a compact 8-DIP Gull Wing package, with 4.5V ~ 20V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 20V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-DIP Gull Wing
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
