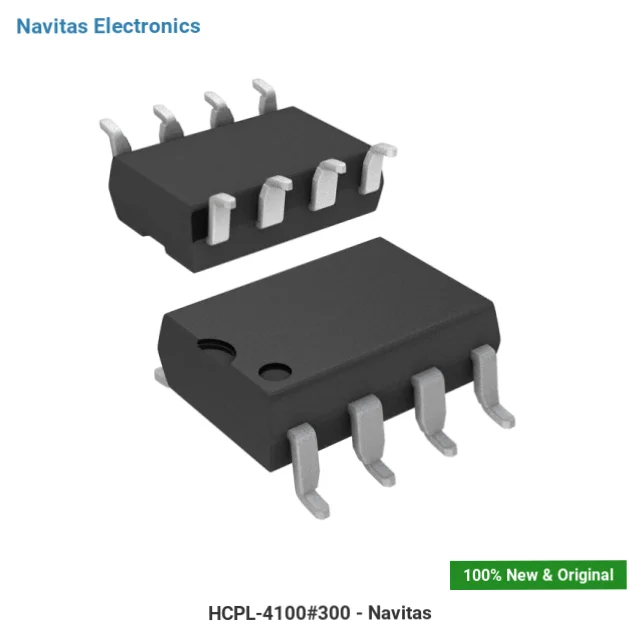

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HCPL-4100#300 |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-1235933 |
| Description | OPTOISO 3.75KV TRNSMTR 8DIP GW |
| Spec | 8-SMD, Gull Wing |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Type | Current Loop Transmitter |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | Logic |
| Current - Output / Channel | 30mA |
| Propagation Delay tpLH / tpHL (Max) | 1.6µs, 1µs |
| Rise / Fall Time (Typ) | 16ns, 23ns |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DIP Gull Wing |
| Approval Agency | CSA, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-4100#300 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-4100#300 is an Isolator manufactured by Broadcom Limited (Broadcom). Optocoupler Isolator 3.75kV Trnsmtr in 8-Pin DIP Package Gull Wing, housed in a compact 8-DIP Gull Wing package, with 4.5V ~ 20V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 20V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-DIP Gull Wing
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
