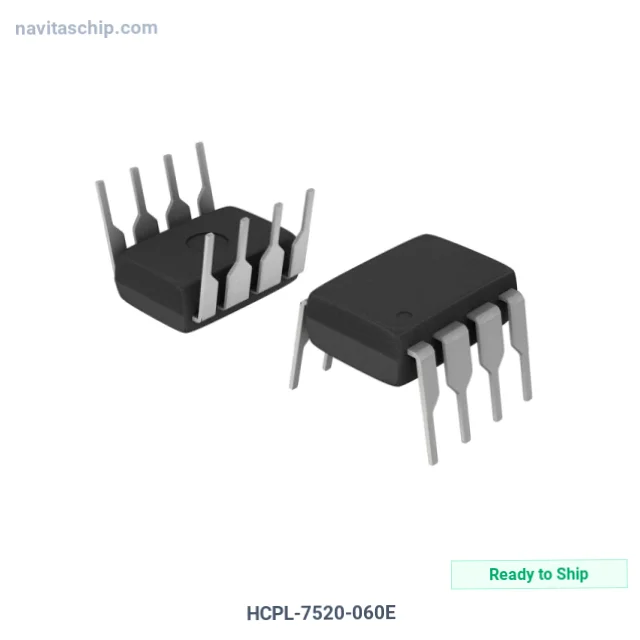

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HCPL-7520-060E |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-1236254 |
| Description | IC CURRENT SENSE 1 CIRCUIT 8DIP |
| Spec | 8-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| -3db Bandwidth | 100 kHz |
| Current - Input Bias | 600 nA |
| Voltage - Input Offset | 600 µV |
| Current - Supply | 11.7mA |
| Current - Output / Channel | 16 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-7520-060E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-7520-060E is an Operational Amplifier (Op Amp) manufactured by Broadcom Limited (Broadcom). Integrated Circuit Current Sense 1 Circuit in 8-Pin DIP Package, housed in a compact 8-DIP package. Extended temperature range version (-40°C to +85°C).
Facing digital isolator shortage? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm)
- Device Package: 8-DIP
- RoHS Compliant
Applications
Ideal solution for:
- instrumentation amplifier with integrated gain resistors for differential bridge sensor readout
- CMOS op amp with sub-microampere quiescent current for always-on battery-powered applications
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
- analog signal chain buffer between sensor front-ends and downstream ADC inputs for data acquisition
Why Choose NavitasChip for HCPL-7520-060E?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the HCPL-7520-060E and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for HCPL-7520-060E with distribution hubs in Hong Kong, Singapore, and Shenzhen.
HCPL-7520-060E - Upload your BOM for fast pricing.
