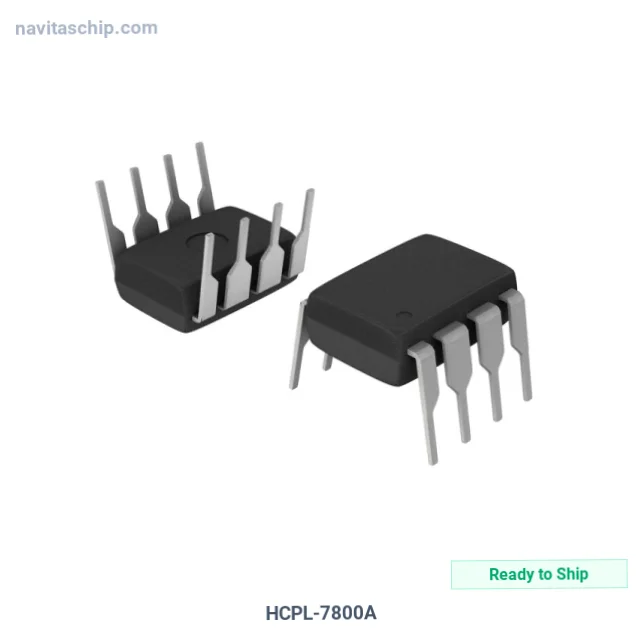

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HCPL-7800A |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-637405 |
| Description | IC OPAMP ISOLATION 1 CIRC 8DIP |
| Spec | 8-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| -3db Bandwidth | 100 kHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 10.9mA |
| Current - Output / Channel | 16 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-7800A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-7800A is an Operational Amplifier (Op Amp) manufactured by Broadcom Limited (Broadcom). Integrated Circuit Operational Amplifier Isolation 1 Circ in 8-Pin DIP Package, housed in a compact 8-DIP package.
