| Manufacturer Product Number | HCPL-7840#560 |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-1234548 |
| Description | IC OPAMP ISOLATION 1 CIRC 8DIPGW |
| Spec | 8-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Broadcom Limited |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Output Type | Differential |
| -3db Bandwidth | 100 kHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 10.86mA |
| Current - Output / Channel | 15.5 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DIP Gull Wing |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-7840#560 Datasheet |

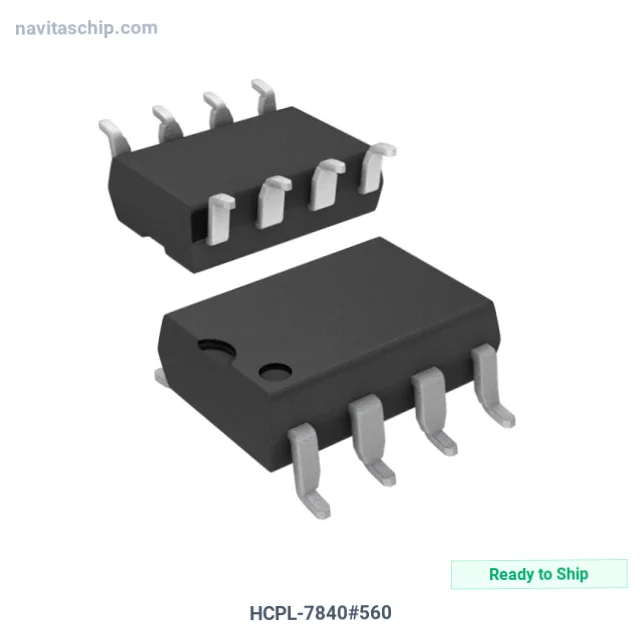

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-7840#560 is an Operational Amplifier (Op Amp) manufactured by Broadcom Limited (Broadcom). Integrated Circuit Operational Amplifier Isolation 1 Circ 8dipgw, housed in a compact 8-DIP Gull Wing package.
Facing digital isolator shortage? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-DIP Gull Wing
Applications
Ideal solution for:
- industrial automation
- precision op amp with low input offset voltage, low drift and high CMRR for instrumentation
- current sense amplifier for high-side and bidirectional battery and motor current monitoring
- high-voltage op amp rated 36 V to 60 V for industrial sensor front-ends and motor control
- rail-to-rail RRIO substitute for discontinued TLV9061, TLV2371, OPA340 and OPA350 single-supply parts
Why Choose NavitasChip for HCPL-7840#560?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the HCPL-7840#560 and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Trusted by procurement managers in Taiwan, South Korea, and across the globe.
HCPL-7840#560 - Check our competitive price now.
