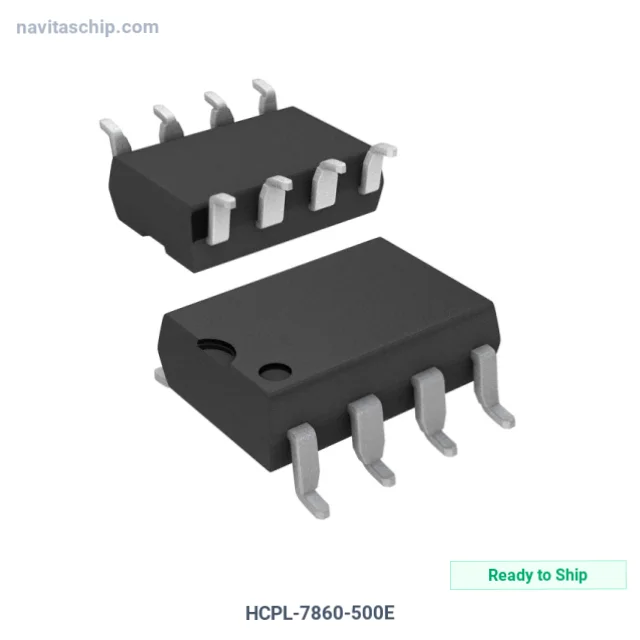

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HCPL-7860-500E |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-1234217 |
| Description | IC ISOLATED MODULE 12BIT 8SMD |
| Spec | 8-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Broadcom Limited |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Isolated Module |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DIP Gull Wing |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-7860-500E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-7860-500E is an Audio Codec and Special-Purpose Data Converter IC manufactured by Broadcom Limited (Broadcom). Integrated Circuit Isolated Module 12bit 8-Surface Mount, housed in a compact 8-DIP Gull Wing package, with 4.5V ~ 5.5V supply voltage. Extended temperature range version (-40°C to +85°C).
Facing digital isolator shortage? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Channels: 4
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-DIP Gull Wing
- RoHS Compliant
Applications
Commonly utilized in:
- consumer electronics
- professional equipment
- professional recording studio and broadcast audio mixing equipment
- IoT edge sensor nodes and building automation data backhaul
Why Choose NavitasChip for HCPL-7860-500E?
NavitasChip offers competitive market pricing for the HCPL-7860-500E and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
HCPL-7860-500E sourced and shipped via our Asia-Pacific distribution network.
HCPL-7860-500E - Inquire for bulk discount.
