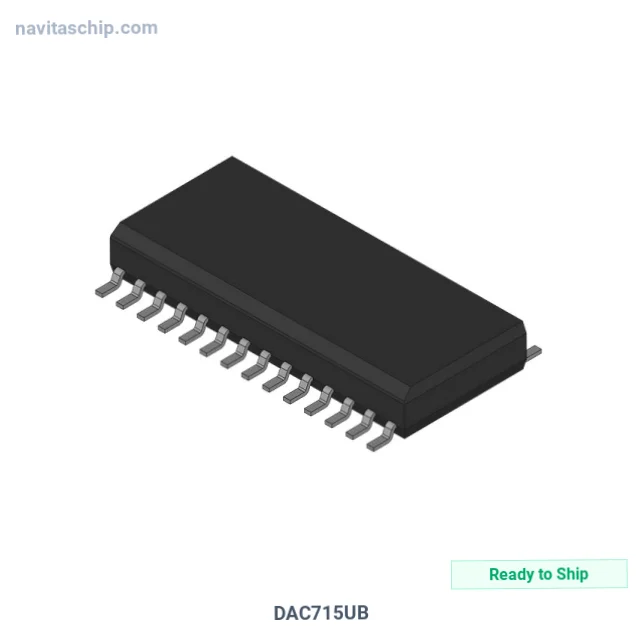

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC715UB |
| Manufacturer | Burr Brown |
| NavitasChip Part Number | NAVI-13485010 |
| Description | DAC715 16-BIT DIGITAL-TO-ANALOG |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Burr Brown |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| INL/DNL (LSB) | ±4 (Max), ±4 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Burr Brown DAC715UB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC715UB is a Digital-to-Analog Converter (DAC) manufactured by Burr Brown. DAC715 16-Bit Digital-To-Analog, housed in a compact 28-SOIC package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
