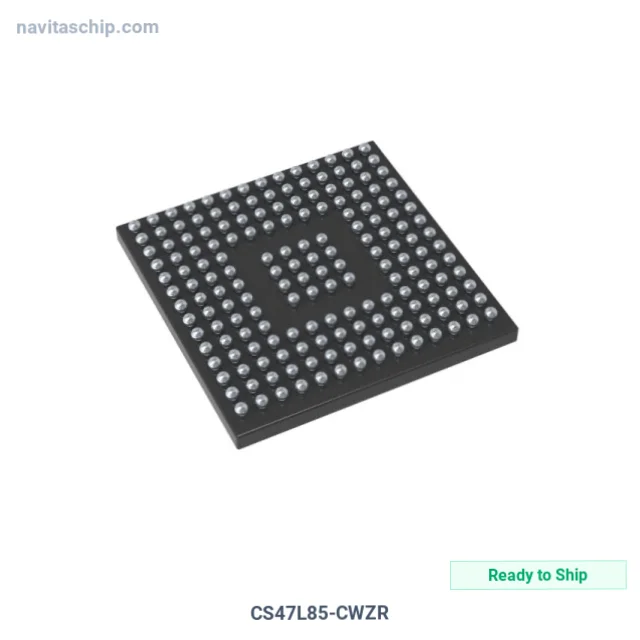

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CS47L85-CWZR |
| Manufacturer | Cirrus Logic Inc. |
| NavitasChip Part Number | NAVI-6594976 |
| Description | IC - LOW PWR AUDIO DSP FOR SMART |
| Spec | 176-UFBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Cirrus Logic Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Audio Codec |
| Interface | I2C, SLIMbus, SPI |
| Clock Rate | 900MIPS |
| Voltage - I/O | 1.2V, 1.8V, 3.6V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-WCSP (5.86x5.96) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cirrus Logic Inc. CS47L85-CWZR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CS47L85-CWZR is a Digital Signal Processor (DSP) manufactured by Cirrus Logic Inc. (Cirrus). Integrated Circuit - Low Power Audio Digital Signal Processor for Smart, housed in a compact 176-WCSP (5.86x5.96) package.
Key Technical Specifications
- Interface: I2C, SLIMbus, SPI
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 176-UFBGA, WLCSP
- Device Package: 176-WCSP (5.86x5.96)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
