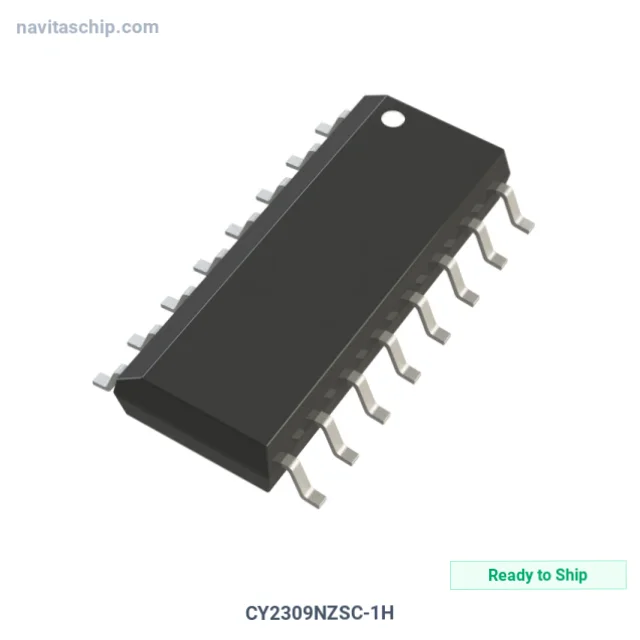

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY2309NZSC-1H |
| Manufacturer | Cypress Semiconductor Corp |
| NavitasChip Part Number | NAVI-11510631 |
| Description | IC CLK BUF 1:9 133.3MHZ 16SOIC |
| Spec | 16-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Cypress Semiconductor Corp |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:9 |
| Differential - Input | No/No |
| Input | Clock |
| Output | Clock |
| Frequency - Max | 133.3 MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cypress Semiconductor Corp CY2309NZSC-1H Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY2309NZSC-1H is a Clock Buffer and Driver IC manufactured by Cypress Semiconductor Corp (Cypress). Integrated Circuit Clock Buffer 1:9 operating at 133.3MHz in 16-Pin SOIC Package, housed in a compact 16-SOIC package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.154", 3.90mm Width)
- Device Package: 16-SOIC
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
