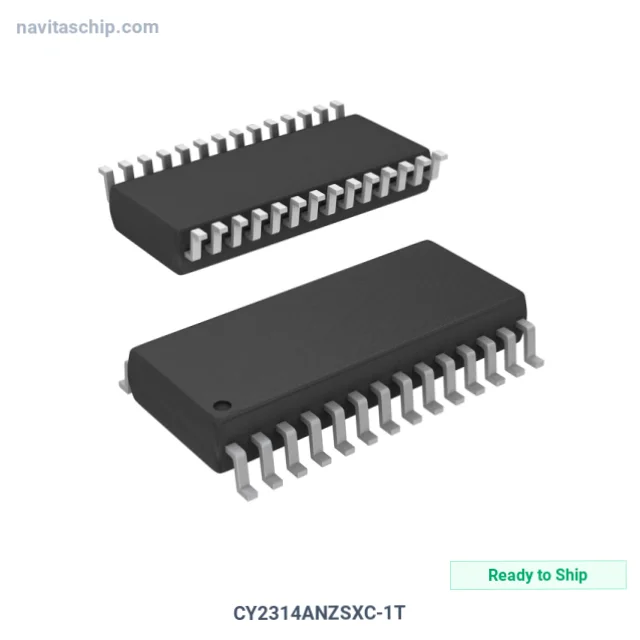

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY2314ANZSXC-1T |
| Manufacturer | Cypress Semiconductor Corp |
| NavitasChip Part Number | NAVI-11557211 |
| Description | IC CLK BUFFER 1:14 100MHZ 28SOIC |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Cypress Semiconductor Corp |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:14 |
| Differential - Input | No/No |
| Input | Clock |
| Output | Clock |
| Frequency - Max | 100 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cypress Semiconductor Corp CY2314ANZSXC-1T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY2314ANZSXC-1T is a Clock Buffer and Driver IC manufactured by Cypress Semiconductor Corp (Cypress). Integrated Circuit Clock Buffer 1:14 operating at 100MHz in 28-Pin SOIC Package, housed in a compact 28-SOIC package, with 3.135V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SOIC
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
