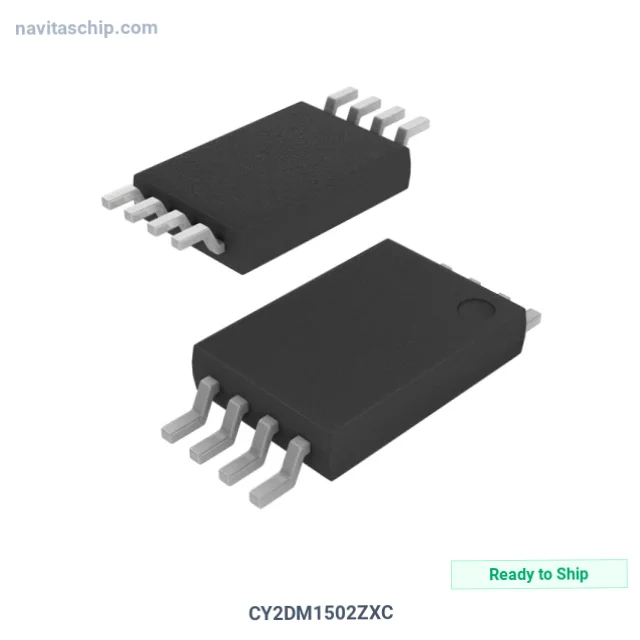

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY2DM1502ZXC |
| Manufacturer | Cypress Semiconductor Corp |
| NavitasChip Part Number | NAVI-11556684 |
| Description | IC CLK BUFFER 1:2 1.5GHZ 8TSSOP |
| Spec | 8-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Cypress Semiconductor Corp |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:2 |
| Differential - Input | Yes/Yes |
| Input | CML, LVPECL |
| Output | CML |
| Frequency - Max | 1.5 GHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cypress Semiconductor Corp CY2DM1502ZXC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY2DM1502ZXC is a Clock Buffer and Driver IC manufactured by Cypress Semiconductor Corp (Cypress). Integrated Circuit Clock Buffer 1:2 operating at 1.5GHz in 8-Pin TSSOP Package, housed in a compact 8-TSSOP package, with 2.375V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.465V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 8-TSSOP (0.173", 4.40mm Width)
- Device Package: 8-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
