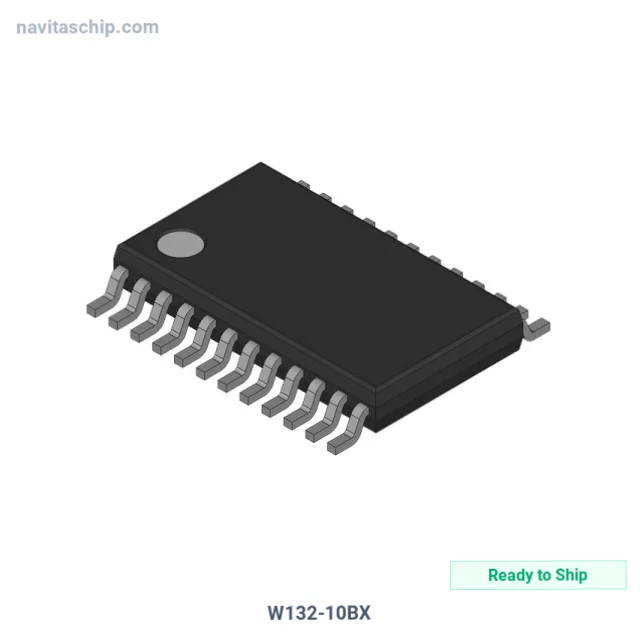

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | W132-10BX |
| Manufacturer | Cypress Semiconductor Corp |
| NavitasChip Part Number | NAVI-12138032 |
| Description | IC ZD BUFFER 24TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Cypress Semiconductor Corp |
| Package | Bulk |
| Product Status | Active |
| Type | Zero Delay Buffer |
| Ratio - Input | 2:11 |
| Differential - Input | No/No |
| Input | Clock |
| Output | LVCMOS, LVTTL |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cypress Semiconductor Corp W132-10BX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W132-10BX is a Clock Buffer and Driver IC manufactured by Cypress Semiconductor Corp (Cypress). Integrated Circuit Zd Buffer in 24-Pin TSSOP Package, housed in a compact 24-TSSOP package, with 2.97V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
