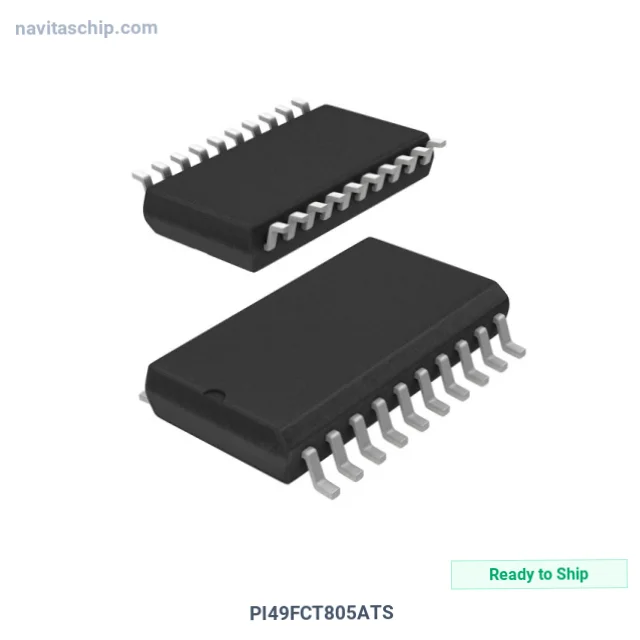

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI49FCT805ATS |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-244873 |
| Description | IC CLK BUFFER 1:5 66MHZ 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Diodes Incorporated |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 2 |
| Ratio - Input | 1:5 |
| Differential - Input | No/No |
| Input | CMOS, TTL |
| Output | CMOS |
| Frequency - Max | 66 MHz |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated PI49FCT805ATS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI49FCT805ATS is a Clock Buffer and Driver IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit Clock Buffer 1:5 operating at 66MHz in 20-Pin SOIC Package, housed in a compact 20-SOIC package, with 4.75V ~ 5.25V supply voltage.
Struggling with long factory lead times exceeding 40-50 weeks on PCIe Gen3 / Gen4 / Gen5 reference clock buffers? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SOIC
Applications
Essential component for:
- mainstream clock buffer 100 MHz to 500 MHz for general-purpose distribution
- ultra-high-frequency clock buffer above 3 GHz for SerDes and PHY timing
- data center server CPU and DDR memory subsystem clock distribution
Why Choose NavitasChip for PI49FCT805ATS?
NavitasChip offers wholesale pricing advantages for the PI49FCT805ATS and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
PI49FCT805ATS available for international procurement with multiple shipping origin options.
PI49FCT805ATS - Check our competitive price now.
