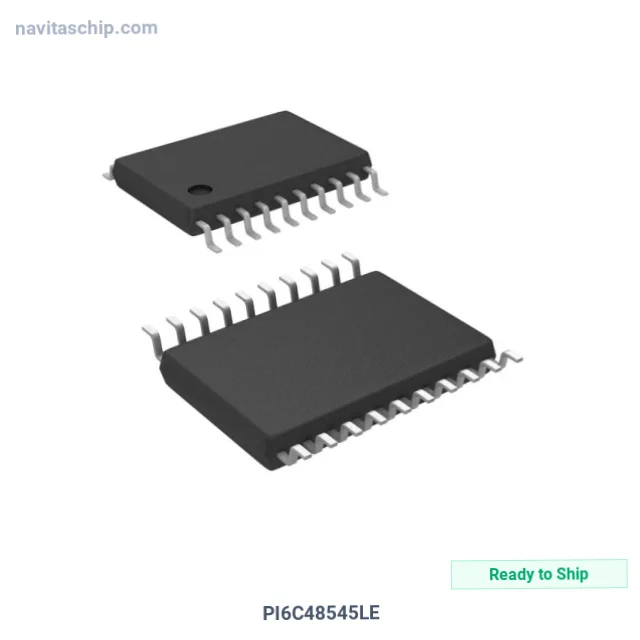

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI6C48545LE |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-3929497 |
| Description | IC CLK BUFFER 2:4 650MHZ 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Diodes Incorporated |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:4 |
| Differential - Input | Yes/Yes |
| Input | LVCMOS, LVTTL |
| Output | LVDS |
| Frequency - Max | 650 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated PI6C48545LE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI6C48545LE is a Clock Buffer and Driver IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit Clock Buffer 2:4 operating at 650MHz in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package, with 3.135V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
