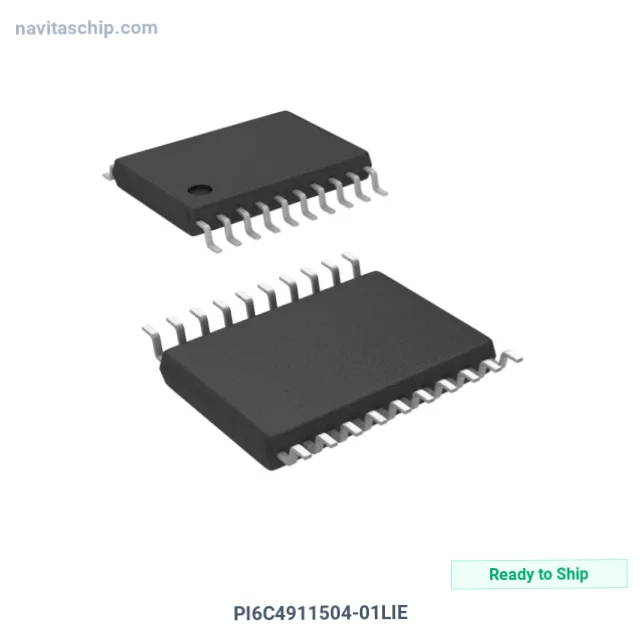

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI6C4911504-01LIE |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-5980833 |
| Description | IC CLK BUFFER 2:4 1.5GHZ 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Diodes Incorporated |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:4 |
| Differential - Input | Yes/Yes |
| Input | LVCMOS, LVDS, LVPECL |
| Output | LVPECL |
| Frequency - Max | 1.5 GHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated PI6C4911504-01LIE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI6C4911504-01LIE is a Clock Buffer and Driver IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit Clock Buffer 2:4 operating at 1.5GHz in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package, with 2.375V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.465V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
