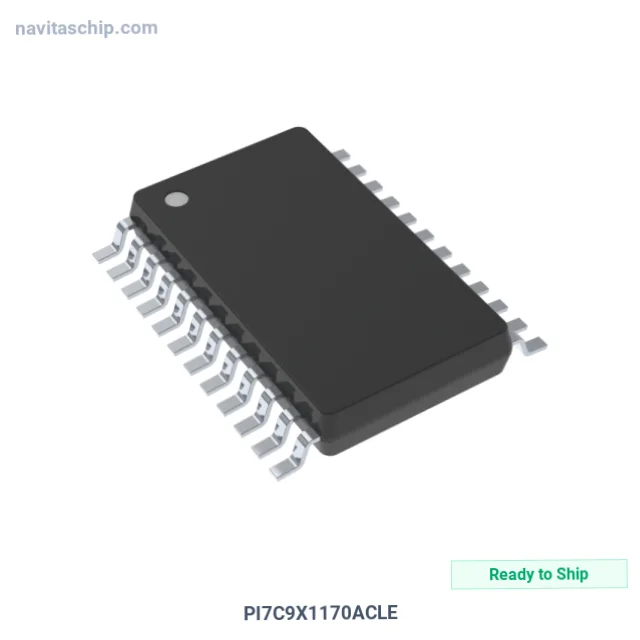

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI7C9X1170ACLE |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-7802396 |
| Description | IC I2C/SPI TO UART 24TSSOP 62PC |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Diodes Incorporated |
| Package | Tube |
| Product Status | Active |
| Protocol | I2C |
| Function | Bridge, I2C/SPI to UART |
| Interface | UART |
| Voltage - Supply | 1.62V ~ 3.63V |
| Current - Supply | 6mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 24-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated PI7C9X1170ACLE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI7C9X1170ACLE is an Interface Controller IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit I2C/spi to UART in 24-Pin TSSOP Package 62pc, housed in a compact 24-TSSOP package, with 1.62V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.62V ~ 3.63V
- Interface: UART
- Operating Temperature: -40°C ~ 85°C (TA)
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
