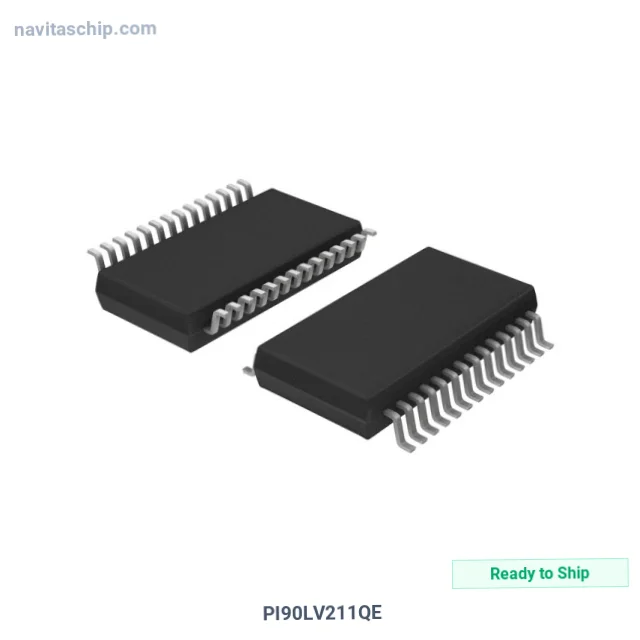

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI90LV211QE |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-1142825 |
| Description | IC CLK BUFFER 2:6 250MHZ 28QSOP |
| Spec | 28-SSOP (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Diodes Incorporated |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:6 |
| Differential - Input | Yes/Yes |
| Input | LVDS, TTL |
| Output | LVDS |
| Frequency - Max | 250 MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-QSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated PI90LV211QE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI90LV211QE is a Clock Buffer and Driver IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit Clock Buffer 2:6 operating at 250MHz 28qsop, housed in a compact 28-QSOP package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-SSOP (0.154", 3.90mm Width)
- Device Package: 28-QSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
