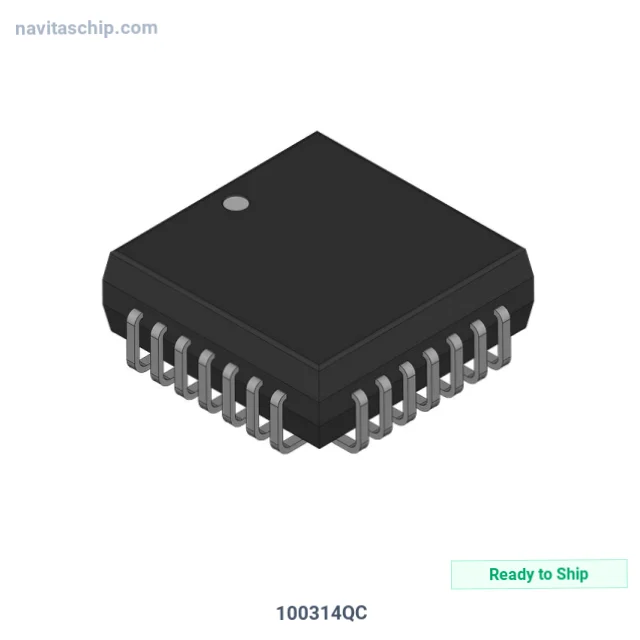

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 100314QC |
| Manufacturer | Fairchild Semiconductor |
| NavitasChip Part Number | NAVI-11550957 |
| Description | IC TRANSCEIVER 0/5 28PLCC |
| Spec | 28-LCC (J-Lead) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Fairchild Semiconductor |
| Package | Tube |
| Product Status | Obsolete |
| Type | Receiver |
| Number of Drivers/Receivers | 0/5 |
| Voltage - Supply | -4.2V ~ -5.7V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Fairchild Semiconductor 100314QC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 100314QC is an Interface Driver Receiver Transceiver IC manufactured by Fairchild Semiconductor (Fairchild). Integrated Circuit Transceiver 0/5 28plcc, housed in a compact 28-PLCC (11.51x11.51) package, with -4.2V ~ -5.7V supply voltage.
Key Technical Specifications
- Supply Voltage: -4.2V ~ -5.7V
- Operating Temperature: 0°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-LCC (J-Lead)
- Device Package: 28-PLCC (11.51x11.51)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
