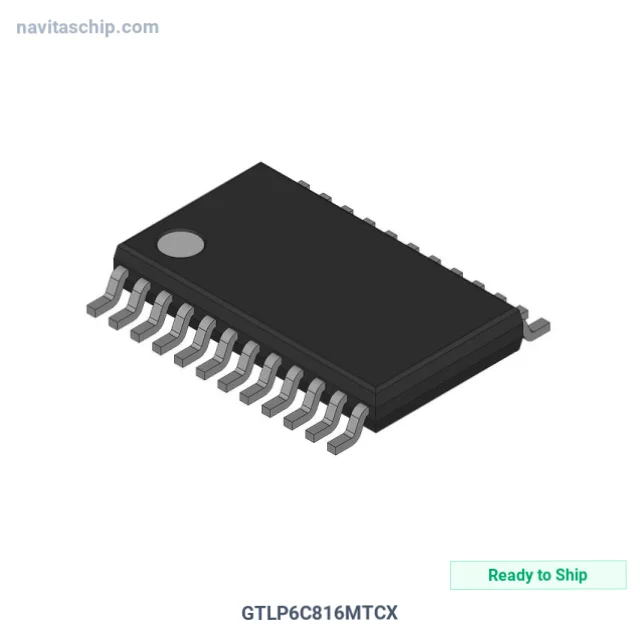

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | GTLP6C816MTCX |
| Manufacturer | Fairchild Semiconductor |
| NavitasChip Part Number | NAVI-11524137 |
| Description | IC CLK BUFFER 1:2, 1:6 24TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Fairchild Semiconductor |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 2 |
| Ratio - Input | 1:2, 1:6 |
| Differential - Input | No/No |
| Input | GTLP, TTL |
| Output | GTLP, TTL |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Fairchild Semiconductor GTLP6C816MTCX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The GTLP6C816MTCX is a Clock Buffer and Driver IC manufactured by Fairchild Semiconductor (Fairchild). Integrated Circuit Clock Buffer 1:2, housed in a compact 24-TSSOP package, with 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
