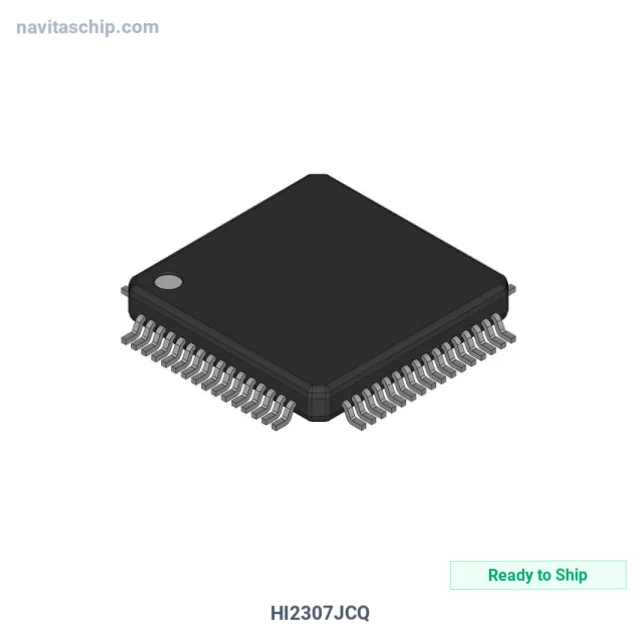

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HI2307JCQ |
| Manufacturer | Harris Corporation |
| NavitasChip Part Number | NAVI-12113048 |
| Description | IC DAC 10BIT A-OUT 64MQFP |
| Spec | 64-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Harris Corporation |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 3 |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | -, ±0.5 |
| Operating Temperature | -20°C ~ 75°C |
| Supplier Device Package | 64-MQFP (10x10) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Harris Corporation HI2307JCQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HI2307JCQ is a Digital-to-Analog Converter (DAC) manufactured by Harris Corporation. Integrated Circuit Digital-To-Analog Converter 10bit A-Out 64mqfp, housed in a compact 64-MQFP (10x10) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -20°C ~ 75°C
- Mounting: Surface Mount
- Package: 64-LQFP
- Device Package: 64-MQFP (10x10)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
