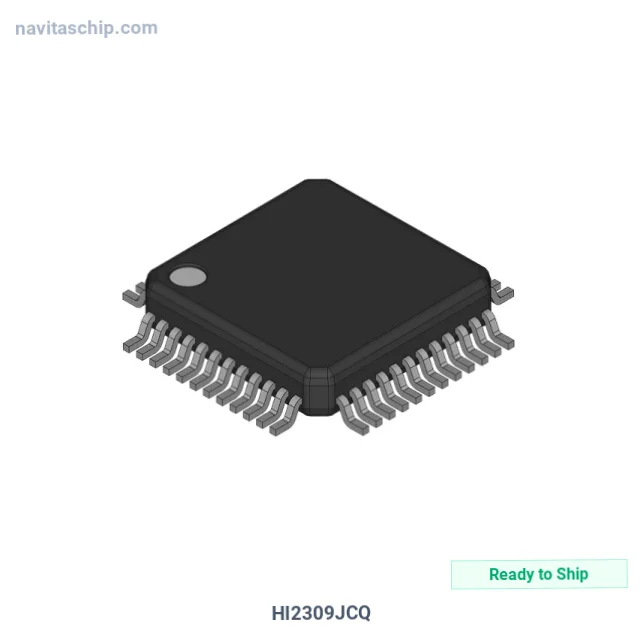

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HI2309JCQ |
| Manufacturer | Harris Corporation |
| NavitasChip Part Number | NAVI-12113340 |
| Description | IC DAC 10BIT A-OUT 48MQFP |
| Spec | 48-BQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Harris Corporation |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 3 |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| INL/DNL (LSB) | ±2, ±0.5 |
| Operating Temperature | -20°C ~ 75°C |
| Supplier Device Package | 48-MQFP (12x12) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Harris Corporation HI2309JCQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HI2309JCQ is a Digital-to-Analog Converter (DAC) manufactured by Harris Corporation. Integrated Circuit Digital-To-Analog Converter 10bit A-Out 48mqfp, housed in a compact 48-MQFP (12x12) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -20°C ~ 75°C
- Mounting: Surface Mount
- Package: 48-BQFP
- Device Package: 48-MQFP (12x12)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
