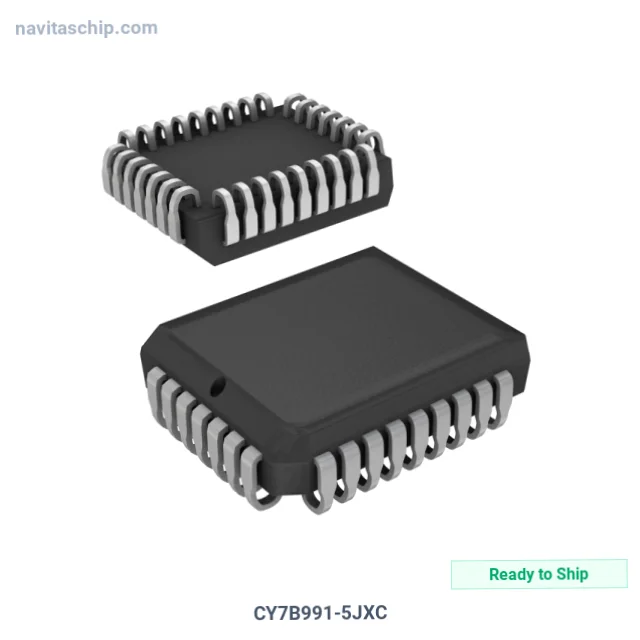

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY7B991-5JXC |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1026280 |
| Description | IC CLK BUFFER 8:8 80MHZ 32PLCC |
| Spec | 32-LCC (J-Lead) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Infineon Technologies |
| Package | Tube |
| Product Status | Obsolete |
| Type | Buffer/Driver |
| Number of Circuits | 1 |
| Ratio - Input | 8:8 |
| Differential - Input | Yes/Yes |
| Input | 3-State, TTL |
| Output | TTL |
| Frequency - Max | 80 MHz |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-PLCC (11.43x13.97) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY7B991-5JXC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY7B991-5JXC is a Clock Buffer and Driver IC manufactured by Infineon Technologies (Infineon). Integrated Circuit Clock Buffer 8:8 operating at 80MHz 32plcc, housed in a compact 32-PLCC (11.43x13.97) package, with 4.5V ~ 5.5V supply voltage. Commercial temperature range (0°C to +70°C).
Don't let discontinued zero-delay PLL clock buffers requiring drop-in pin-compatible replacements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 32-LCC (J-Lead)
- Device Package: 32-PLCC (11.43x13.97)
- RoHS Compliant
Applications
Designed for:
- zero-delay PLL clock buffer for synchronous downstream distribution
- high-frequency clock buffer 1 GHz to 3 GHz for serial link reference clocks
- ultra-low additive jitter and femtosecond phase noise performance
- data center server CPU and DDR memory subsystem clock distribution
- PCIe Gen3 / Gen4 / Gen5 reference clock and SerDes timing infrastructure
Why Choose NavitasChip for CY7B991-5JXC?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the CY7B991-5JXC and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
CY7B991-5JXC sourced and shipped via our Asia-Pacific distribution network.
CY7B991-5JXC - Check our competitive price now.
