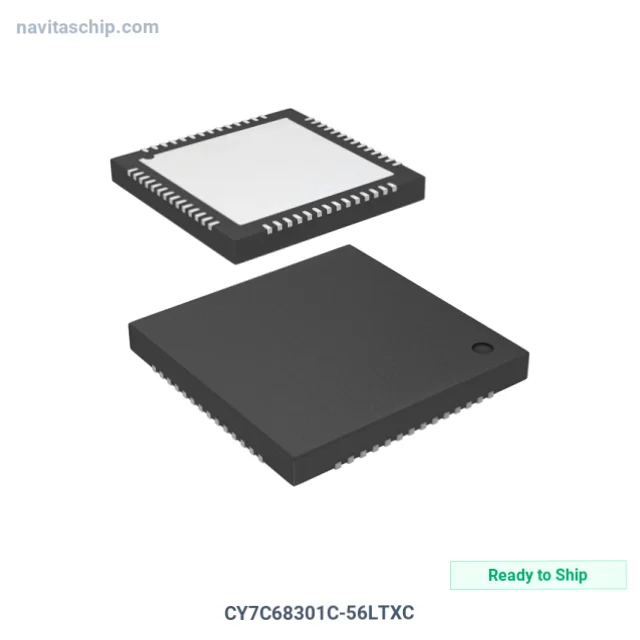

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY7C68301C-56LTXC |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-2096151 |
| Description | IC USB 2.0 BRIDGE AT2LP 56VQFN |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Obsolete |
| Protocol | USB |
| Function | Bridge, USB to ATA |
| Interface | ATA |
| Standards | USB 2.0 |
| Voltage - Supply | 3.15V ~ 3.45V |
| Current - Supply | 50mA |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 56-QFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY7C68301C-56LTXC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY7C68301C-56LTXC is an Interface Controller IC manufactured by Infineon Technologies (Infineon). Integrated Circuit USB 2.0 Bridge At2lp 56vqfn, housed in a compact 56-QFN (8x8) package, with 3.15V ~ 3.45V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.15V ~ 3.45V
- Interface: ATA
- Operating Temperature: 0°C ~ 70°C
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-QFN (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
