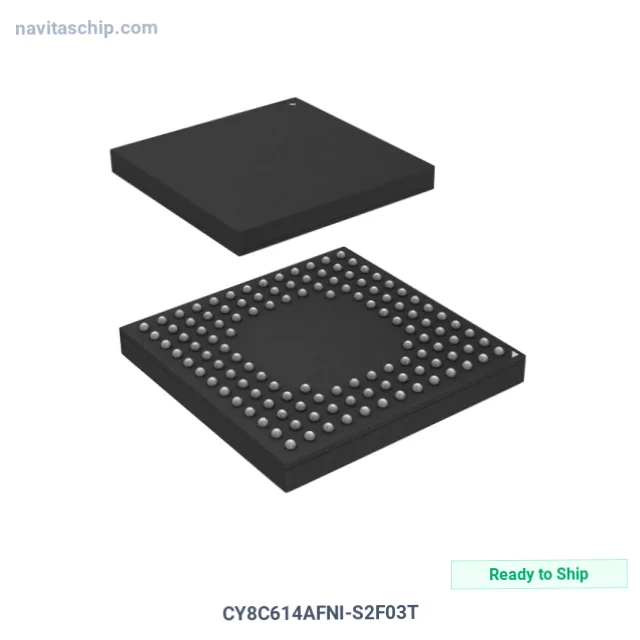

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY8C614AFNI-S2F03T |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-16896042 |
| Description | IC MCU 32BIT 2MB FLASH 100WLCSP |
| Spec | 100-UFBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M4F |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz, 150MHz |
| Connectivity | eMMC/SD/SDIO, I2C, IrDA, LINbus, Microwire, QSPI, SmartCard, SPI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 82 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x8b, 16x10/12b SAR, Sigma-Delta; D/A 2x7/8b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-WLCSP (4.11x3.9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY8C614AFNI-S2F03T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY8C614AFNI-S2F03T is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 2mb Flash Memory 100wlcsp, housed in a compact 100-WLCSP (4.11x3.9) package.
Facing EOL (End of Life) notices? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 100-UFBGA, WLCSP
- Device Package: 100-WLCSP (4.11x3.9)
- RoHS Compliant
Applications
Critical part of:
- industrial automation
- consumer electronics
- professional equipment
- wearable devices
Why Choose NavitasChip for CY8C614AFNI-S2F03T?
NavitasChip offers competitive market pricing for the CY8C614AFNI-S2F03T and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of CY8C614AFNI-S2F03T for the South Korea and Vietnam markets.
CY8C614AFNI-S2F03T - Inquire for bulk discount.
