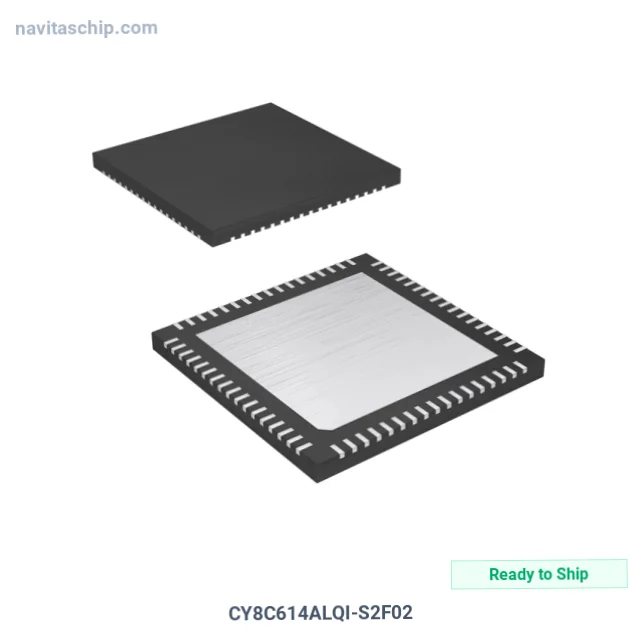

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY8C614ALQI-S2F02 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-17399417 |
| Description | IC MCU 32BIT 2MB FLASH 68QFN |
| Spec | 68-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 150MHz |
| Connectivity | eMMC/SD/SDIO, FIFO, I2C, IrDA, LINbus, Microwire, QSPI, SmartCard, SPI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, LVD, PMC, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 53 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x10b SAR, 16x12b Sigma-Delta; D/A 2x7/8b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-QFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY8C614ALQI-S2F02 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY8C614ALQI-S2F02 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 2mb Flash Memory in 68-Pin QFN Package, housed in a compact 68-QFN (8x8) package.
Struggling with challenging Target Price (TP) requirements? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 68-VFQFN Exposed Pad
- Device Package: 68-QFN (8x8)
- RoHS Compliant
Applications
Designed for:
- IoT devices
- professional equipment
- wearable devices
- industrial control
Why Choose NavitasChip for CY8C614ALQI-S2F02?
NavitasChip offers cost-effective alternative to authorized distributors for the CY8C614ALQI-S2F02 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
CY8C614ALQI-S2F02 sourced and shipped via our Asia-Pacific distribution network.
CY8C614ALQI-S2F02 - Check our competitive price now.
