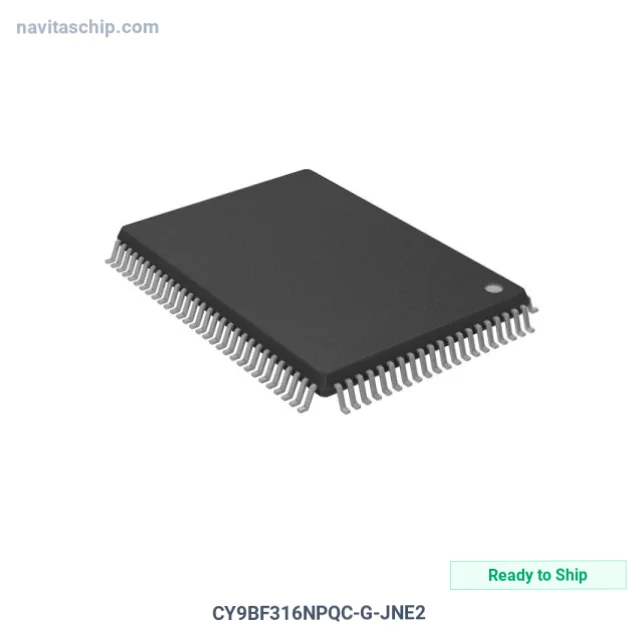

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY9BF316NPQC-G-JNE2 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5787261 |
| Description | IC MCU 32BIT 544KB FLASH 100PQFP |
| Spec | 100-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 144MHz |
| Connectivity | CSIO, EBI/EMI, I2C, LINbus, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 83 |
| Program Memory Size | 544KB (544K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-PQFP (14x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY9BF316NPQC-G-JNE2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY9BF316NPQC-G-JNE2 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 544kb Flash Memory 100pqfp, housed in a compact 100-PQFP (14x20) package.
Struggling with challenging Target Price (TP) requirements? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-PQFP (14x20)
- RoHS Compliant
Applications
Engineered specifically for:
- embedded systems
- IoT devices
- industrial automation
- smart home
Why Choose NavitasChip for CY9BF316NPQC-G-JNE2?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the CY9BF316NPQC-G-JNE2 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Fast CY9BF316NPQC-G-JNE2 delivery to Singapore and Australia via DHL, FedEx, and UPS.
CY9BF316NPQC-G-JNE2 - Get instant quote online.
