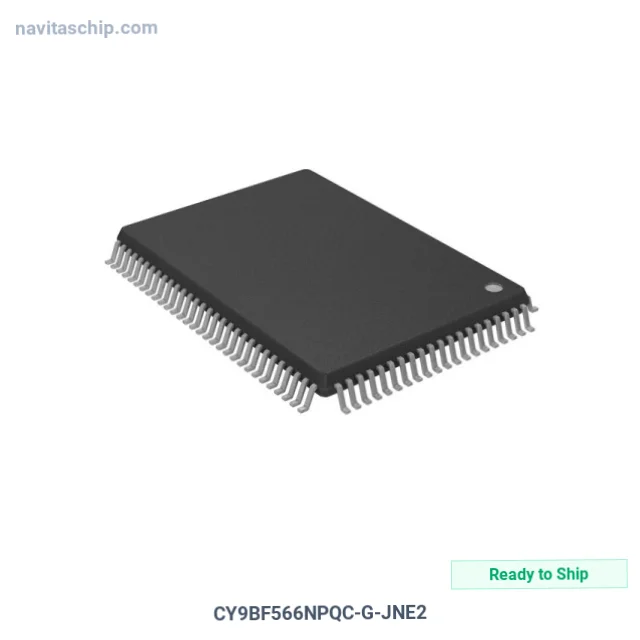

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CY9BF566NPQC-G-JNE2 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5787470 |
| Description | IC MCU 32BIT 544KB FLASH 100PQFP |
| Spec | 100-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, SD, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 80 |
| Program Memory Size | 544KB (544K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-PQFP (14x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies CY9BF566NPQC-G-JNE2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CY9BF566NPQC-G-JNE2 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 32bit 544kb Flash Memory 100pqfp, housed in a compact 100-PQFP (14x20) package.
Facing microcontroller shortage? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-PQFP (14x20)
- RoHS Compliant
Applications
Perfect for:
- embedded systems
- industrial automation
- consumer electronics
- professional equipment
- wearable devices
Why Choose NavitasChip for CY9BF566NPQC-G-JNE2?
NavitasChip offers cost-effective alternative to authorized distributors for the CY9BF566NPQC-G-JNE2 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
CY9BF566NPQC-G-JNE2 sourced and shipped via our Asia-Pacific distribution network.
CY9BF566NPQC-G-JNE2 - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
