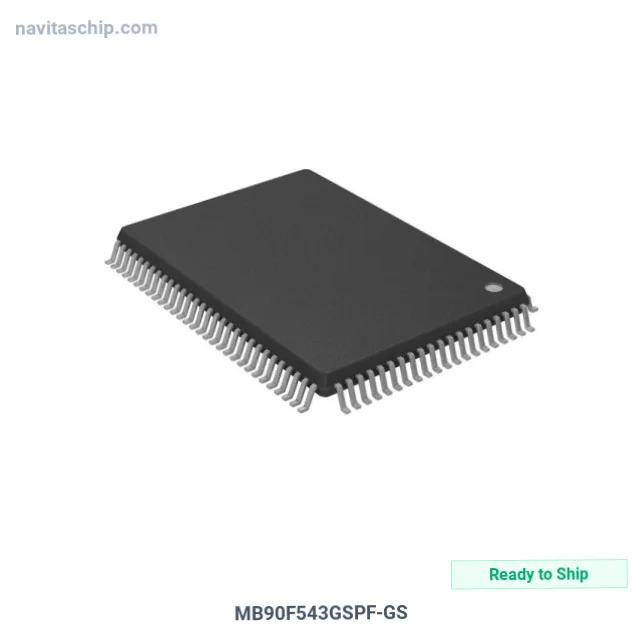

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MB90F543GSPF-GS |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5785158 |
| Description | IC MCU 16BIT 128KB FLASH 100QFP |
| Spec | 100-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | F²MC-16LX |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | CANbus, EBI/EMI, SCI, Serial I/O, UART/USART |
| Peripherals | POR, WDT |
| Number of I/O | 81 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies MB90F543GSPF-GS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MB90F543GSPF-GS is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 16bit 128kb Flash Memory in 100-Pin QFP Package, housed in a compact 100-QFP (14x20) package.
Facing MCU allocation crisis? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-QFP (14x20)
- RoHS Compliant
Applications
Critical part of:
- IoT devices
- professional equipment
- wearable devices
- industrial control
- smart home
Why Choose NavitasChip for MB90F543GSPF-GS?
NavitasChip offers cost-saving procurement for the MB90F543GSPF-GS and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
MB90F543GSPF-GS sourced and shipped via our Asia-Pacific distribution network.
MB90F543GSPF-GS - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
