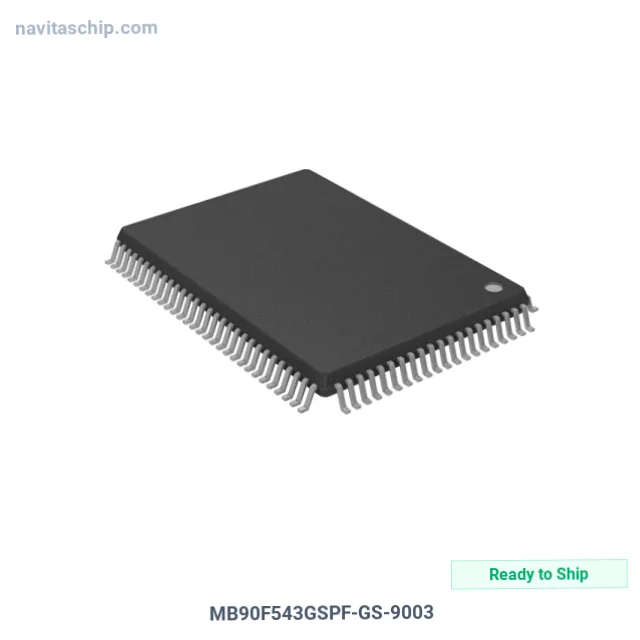

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MB90F543GSPF-GS-9003 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-5785161 |
| Description | IC MCU 16BIT 128KB FLASH 100QFP |
| Spec | 100-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | F²MC-16LX |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | CANbus, EBI/EMI, SCI, Serial I/O, UART/USART |
| Peripherals | POR, WDT |
| Number of I/O | 81 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies MB90F543GSPF-GS-9003 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MB90F543GSPF-GS-9003 is a Microcontroller (MCU) manufactured by Infineon Technologies (Infineon). Integrated Circuit Microcontroller 16bit 128kb Flash Memory in 100-Pin QFP Package, housed in a compact 100-QFP (14x20) package.
Facing production line down? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-QFP (14x20)
- RoHS Compliant
Applications
Ideal solution for:
- IoT devices
- industrial automation
- consumer electronics
- professional equipment
Why Choose NavitasChip for MB90F543GSPF-GS-9003?
NavitasChip offers hard-to-find component sourcing for legacy systems for the MB90F543GSPF-GS-9003 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
MB90F543GSPF-GS-9003 available for international procurement with multiple shipping origin options.
MB90F543GSPF-GS-9003 - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
