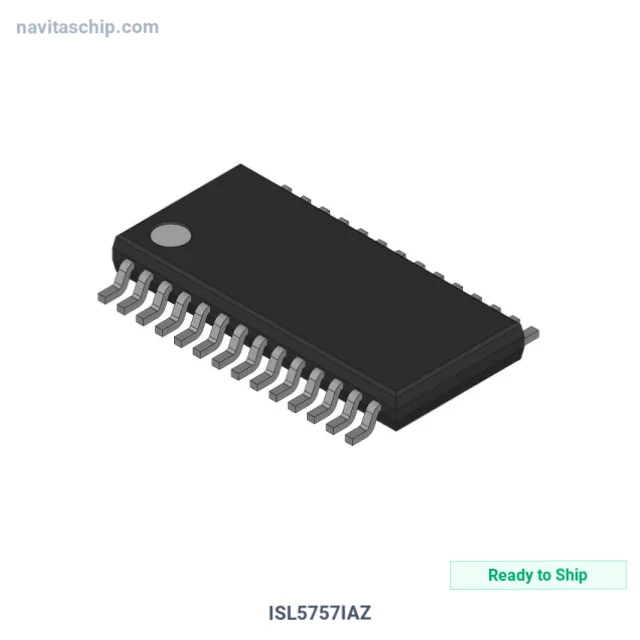

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Intersil |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| INL/DNL (LSB) | ±0.1, ±0.1 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Intersil ISL5757IAZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ISL5757IAZ is a Digital-to-Analog Converter (DAC) manufactured by Intersil. Integrated Circuit Digital-To-Analog Converter 10bit A-Out in 28-Pin TSSOP Package, housed in a compact 28-TSSOP package. Originally developed by Intersil.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
