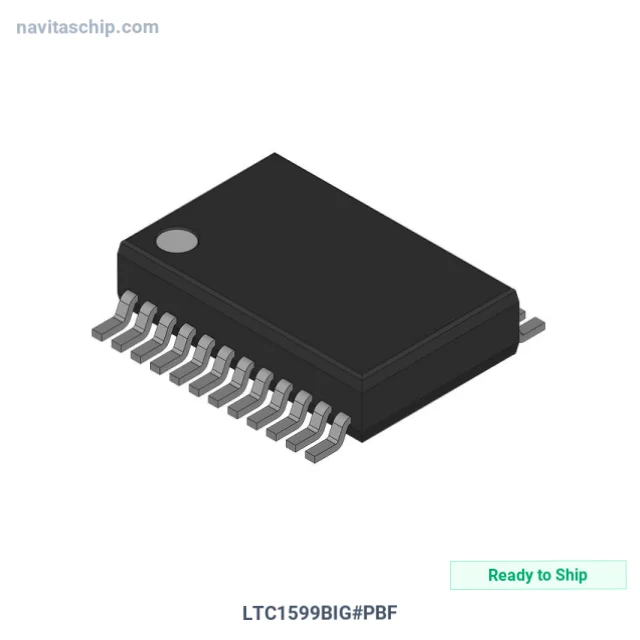

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1599BIG#PBF |
| Manufacturer | Linear Technology |
| NavitasChip Part Number | NAVI-13452782 |
| Description | IC DAC 16BIT A-OUT 24SSOP |
| Spec | 24-SSOP (0.209", 5.30mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Linear Technology |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 24-SSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Linear Technology LTC1599BIG#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1599BIG#PBF is a Digital-to-Analog Converter (DAC) manufactured by Linear Technology (LTC). Integrated Circuit Digital-To-Analog Converter 16bit A-Out in 24-Pin SSOP Package, housed in a compact 24-SSOP package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SSOP (0.209", 5.30mm Width)
- Device Package: 24-SSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
