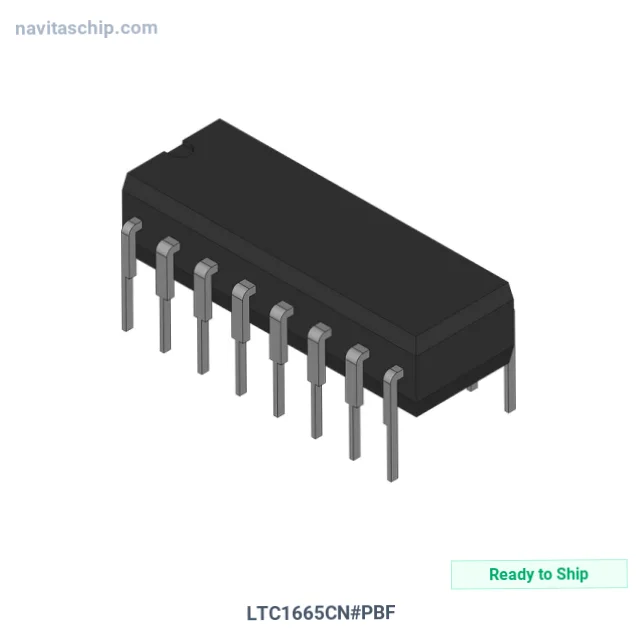

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1665CN#PBF |
| Manufacturer | Linear Technology |
| NavitasChip Part Number | NAVI-13496648 |
| Description | D/A CONVERTER, SERIAL INPUT LOAD |
| Spec | 16-DIP (0.300", 7.62mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Linear Technology |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 8 |
| Settling Time | 30µs (Typ) |
| Output Type | Voltage - Unbuffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.2, ±0.1 |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 16-PDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Linear Technology LTC1665CN#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1665CN#PBF is a Digital-to-Analog Converter (DAC) manufactured by Linear Technology (LTC). Digital-To-Analog Converter, housed in a compact 16-PDIP package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Voltage - Unbuffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 16-DIP (0.300", 7.62mm)
- Device Package: 16-PDIP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
